Warriors 3 comics & Games Arcade Cabinet

Commissioned

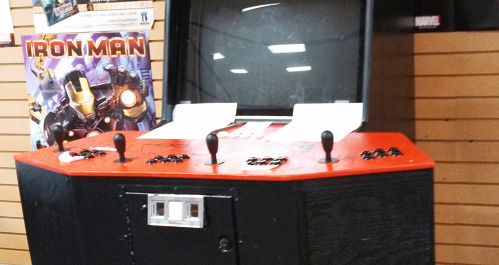

I had modified an old Xbox back in 2012 and was able to put a few classic games onto it and put in an old track and field cabinet. I was talking to the local comic shop owners the next year about it and explained how I found a track and field cabinet and put it in that cab. They asked if it was for sale and if I could make it a four player cabinet. I got home bought the supplies I needed and started to work on getting the controllers spliced onto the button board... I was young and dumb and did things the hard way, I've learned since then. But I got it completed, unfortunately Warriors 3 comics and ganes is no longer there so this cabinet is not playable to the public any longer but I believe it is currently residing in Bills home.

Added all the electrical work. I did not think about quick disconnects so I had hand soldered everything. It was a pain to say the least.

June 8, 2013
Completed
Click to see more Picture of this update

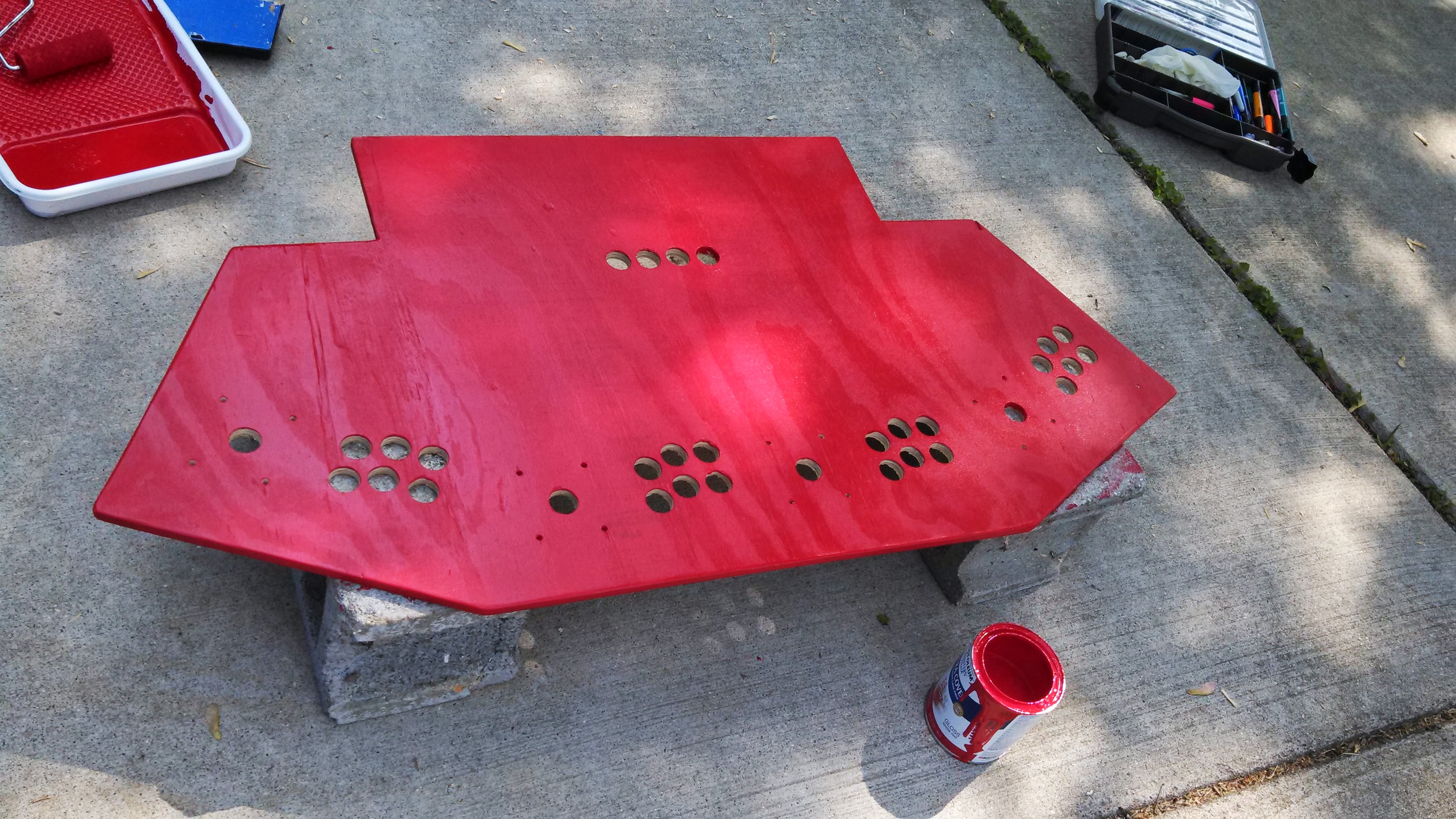

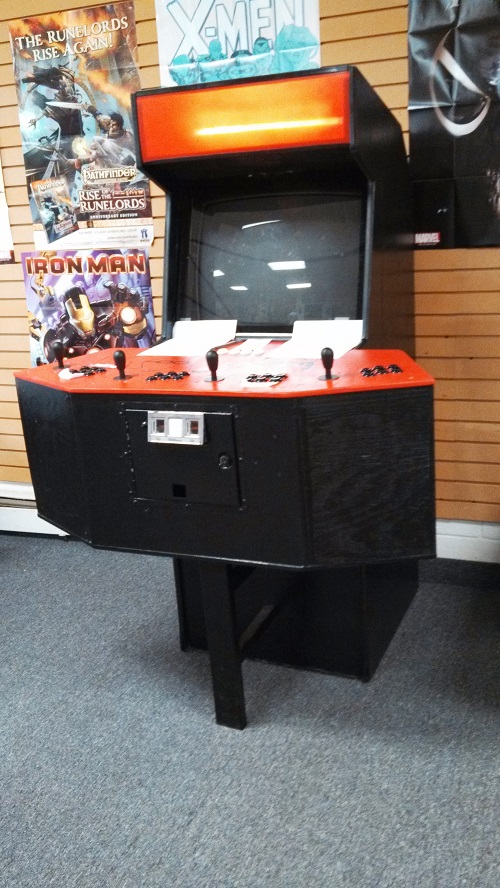

I added the four player belly, it was a tight squeeze but I made it fit. drilled out the holes and started on the paint job it came together all in the end quite nicely.

May 29, 2013
Work in Progress
